Foundations | Definition, Types, Importance of Foundation and Bearing Capacity
Any construction project must have foundations because they give the structure stability, support, and longevity. Even the most carefully planned structures run the risk of collapsing without a strong foundation. The definition, types, significance, and bearing capacity of foundations will all be covered in this article, which will conclude with a thorough analysis of their vital role in construction.
Definition of Foundations
foundation is The lowest load-bearing component of a structure that transmits its weight to the ground (soil). By acting as a bridge between the building and the ground, it distributes the weights of the structure uniformly and keeps the soil from experiencing excessive stress. With the help of foundations, a building can withstand structural and environmental forces over time and stay stable without sinking, tilting, or collapsing.
Foundations are more than just structural components; they are the result of a careful fusion of geotechnical knowledge and engineering principles. They are made with the type of soil, load conditions, environmental conditions, and the structure itself in mind.
Types of Foundations
Based on their depth, foundations can be broadly divided into two groups: shallow foundations and deep foundations. Depending on the soil conditions at the construction site and the specifications of the building’s design, each type has a specific use.
shallow foundations are built close to the earth’s surface. They work best for structures that are lightweight or in circumstances where the surface soil can support a sufficient amount of weight. Types Shallow foundation includes:
- Strip footing is a long, continuous footing that supports columns or walls.
- Isolated footing is a footing support one column which transfers loads straight to the ground below.
- combined footing is a footing support two or more columns in one axis which transfers loads straight to the ground below.
- Raft Foundation: Also known as mat foundation, this type of foundation uses a large slab to distribute the load over a wide area.used when soil has low bearing capacity and loads is large
Deep foundations reach a stratum with sufficient load-bearing capacity by penetrating deeper soil layers. They work well for locations with weak surface soils or for heavy structures. types deep foundation includes:

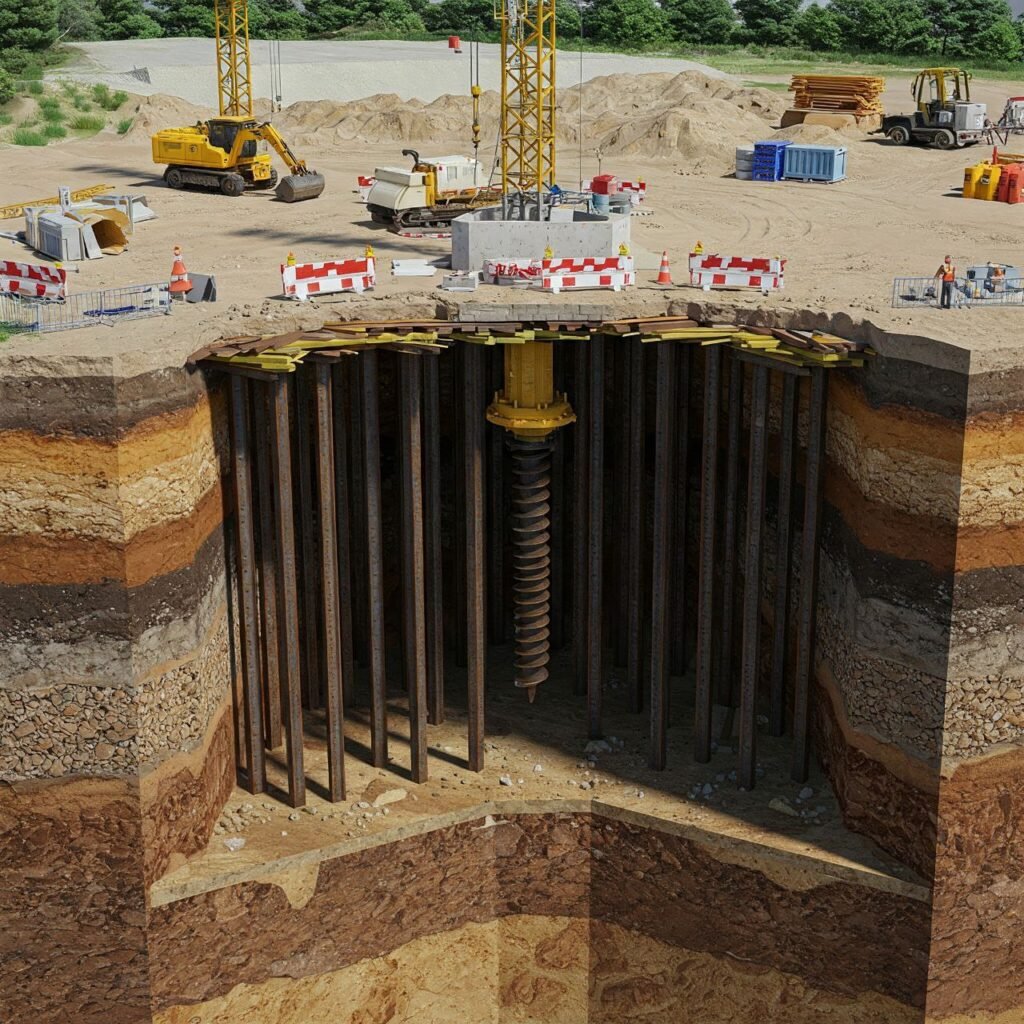

- Piles To transfer the load to deeper layers, piles are long, cylindrical components that are driven into the ground.
- Caissons are large-diameter foundations that are often used in difficult or underwater environments. They are made by excavating and then filling them with concrete.
- A pier foundation is made up of vertical columns that are supported by a solid layer beneath the ground.
Importance of Foundations
Loads Distribution:foundations make sure that the weight of the structure is distributed evenly to the ground. and prevent uneven settlement or stress on the soil,
Structural stability:The building is stabilized against lateral forces like wind, earthquakes, and floods by a well-designed foundation. It guarantees that throughout its life, the structure will stay upright and intact.
soil interaction: The Interaction of Soils The effects of soil movements brought on by variations in moisture content, expansion, or contraction are lessened by foundations. They guard against structural damage such as tilting and cracking.
Duarability:Sturdiness Foundations increase a structure’s durability by providing a solid base. A sturdy foundation ensures the longevity of the building by reducing wear and tear.
Safety: The integrity of the foundation determines occupant safety. Inadequate foundation design can result in structural failures that put property and lives at risk.
Bearing Capacity
One important factor in foundation design is the soil’s bearing capacity. The maximum load per unit area that the soil can sustain without failing is referred to here. To prevent excessive settlement, tilting, or collapse, it is crucial to comprehend the bearing capacity.
factors affecting bearing capacity
- Soil Type: The ability of various soils to support loads varies, including rock, sand, and clay.
- Depth: Because deeper soils are less susceptible to surface conditions, they typically have higher bearing capacities.
- Moisture Content: Clay and other wet soils typically have lower bearing capacities.
- compaction:Compacted soils are able to support heavier loads.
- load Distribution Well-designed foundations distribute loads to maximize bearing capacity.
Compaction, stabilization, and the use of reinforced foundations are techniques to increase the bearing capacity of soil.
conclusion
The unsung heroes of construction are the foundations, which guarantee the longevity and structural soundness of buildings. By distributing loads, offering stability, and reducing environmental and soil-related issues, they act as the structure’s vital interface with the ground.
The type of foundation chosen is determined by a number of factors, including the structure’s nature, load requirements, and soil conditions. While deep foundations are essential for heavy loads and difficult soil conditions, shallow foundations are more affordable and appropriate for lightweight structures.
Designing a foundation requires a deep comprehension of bearing capacity. To maximize the foundation’s performance, avoid failures, and improve the structure’s safety and longevity, precise soil assessment and engineering solutions are necessary.
